E-7 SystemNEW

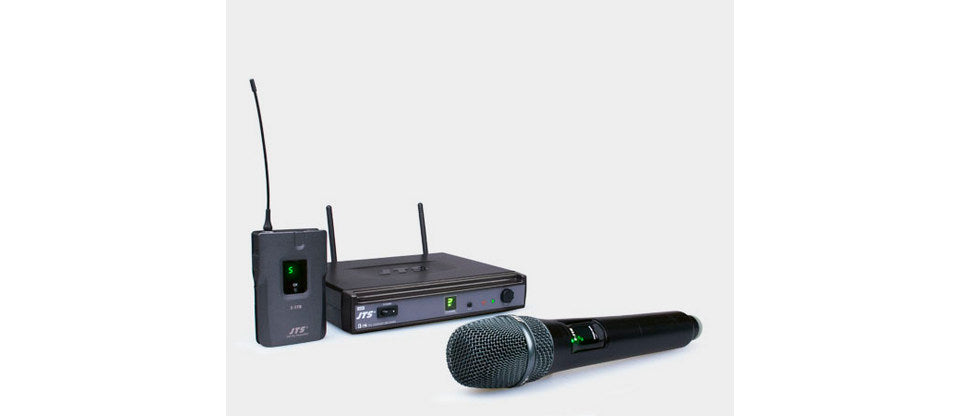

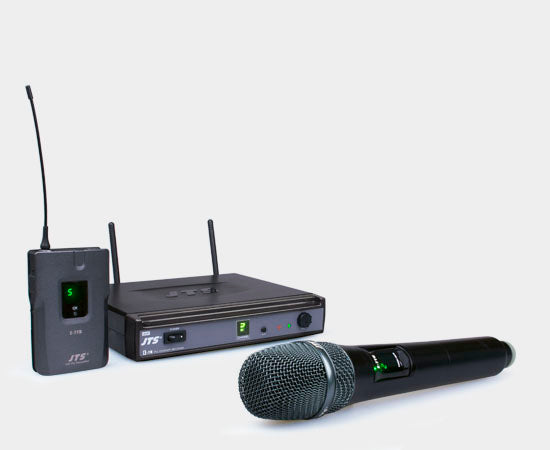

The E-7R/E-7Du wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is at a
very affordable price.
SPECIFICATIONS

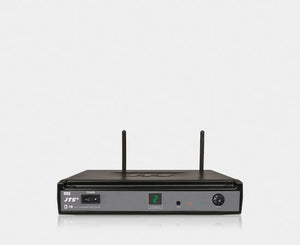

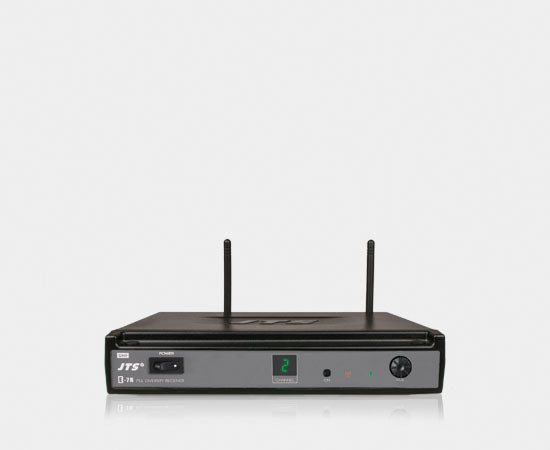

E-7R (single) / E-7Du (Dual)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
S/N Ratio >100dB
T.H.D. <0.6%@1KHz
Display Contents Channel, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -15dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage
12V 150mA (E-7R) / 12V 250mA (E-7Du)
Output Connector 1 Ø6.3mm balanced phone jack
Dimension (mm) 210mm(W)* 40mm(H)* 170mm(D)

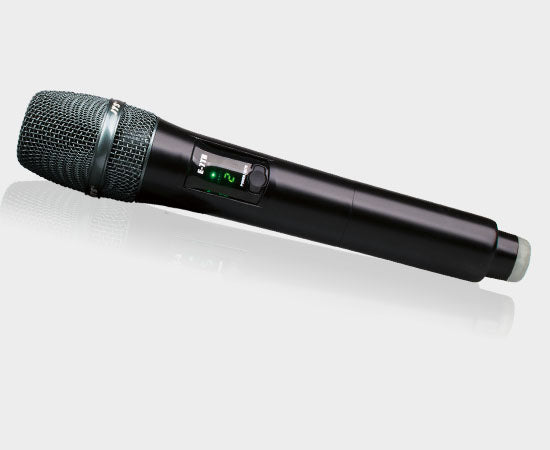

E-7TH / E-7THD
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
StabilityFrequency <±10KHz
Deviation: ±48KHz (Peak)
Display Contents Channel, Battery Status, Power On/Off, Mute
Controls Power On/Off, Channel, Mute
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz~18KHz
Battery UM3, AA Alkaline x2

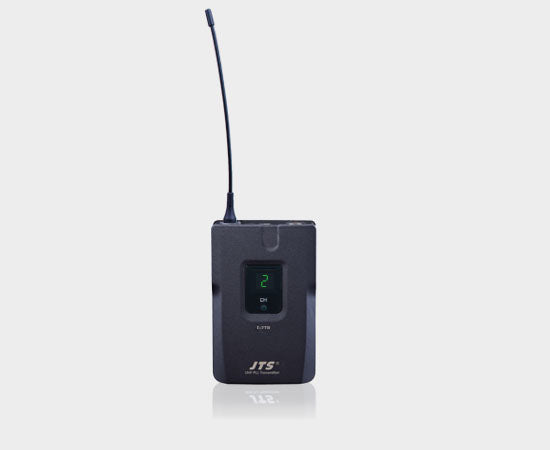

E-7TB / E-7TBD
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
StabilityFrequency <±10KHz
Deviation: ±48KHz (Peak)
Display Contents Channel, Battery Status, Power On/Off, Mute
Controls Power On/Off, Channel, Mute
Input Connector 4P mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 40Hz~18KHz
Battery UM3, AA Alkaline x2
