Compact, High Performance, Active 2-way Studio Monitors.
Compact Studio Monitors

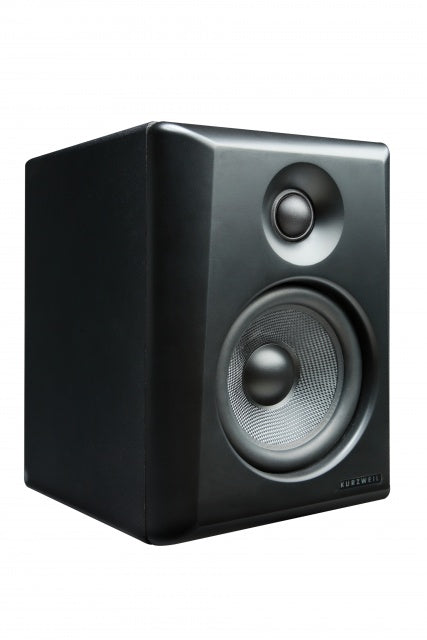

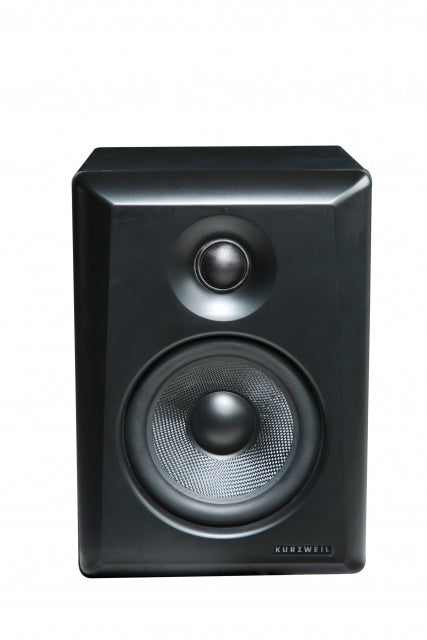

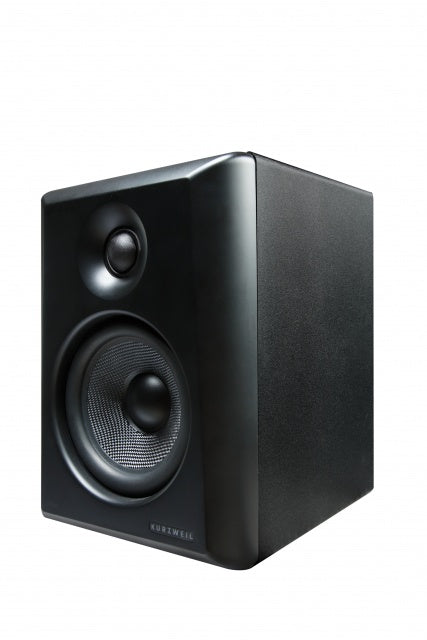

KS-50A Self-powered, magnetically shielded studio monitors with a small footprint, ideal for near-field applications.

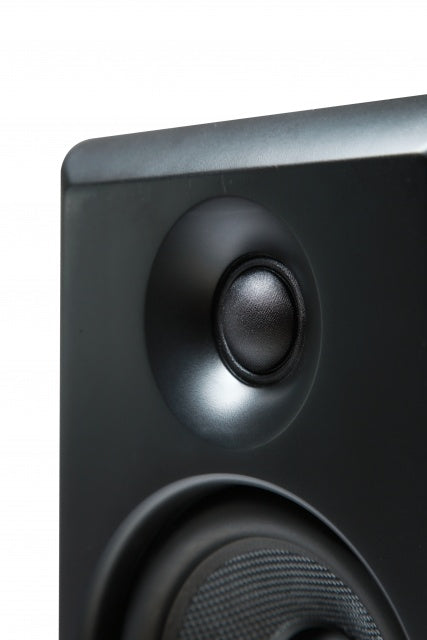

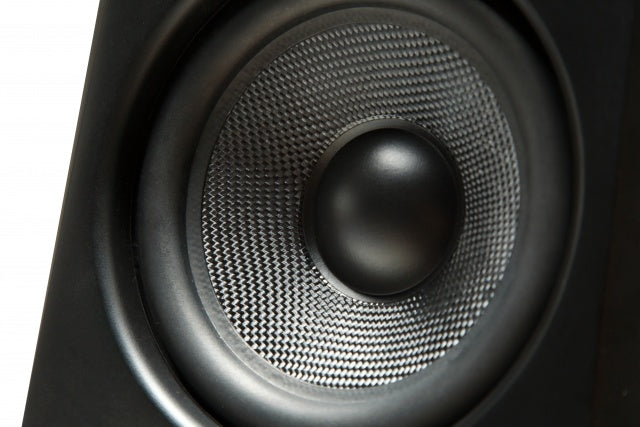

KS-50A drivers Two-way system employing a 1" silk-dome tweeter and 5" kevlar-woven low-frequency driver.
KS-50A angle The KS-50A features 60 watts of total power (30 W HF + 30W LF) and delivers 88dB SPL (+/- 3dB).
Reflex Port Design
KS-50A port A rear panel bass reflex port helps extend the bass response down to 50 Hz.

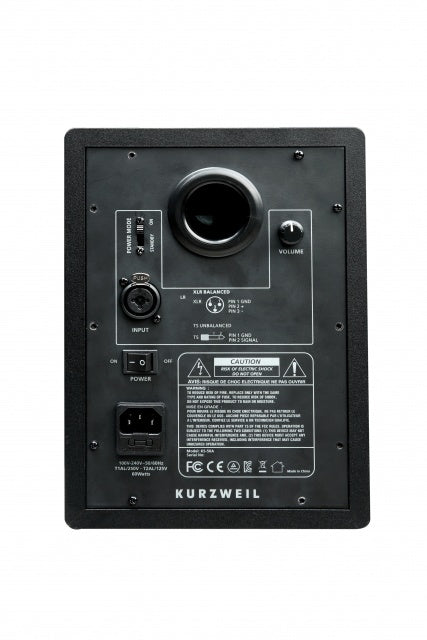

KS-50A back The convenient combo connector provides balanced XLR or unbalanced 1/4" TS input.
System Type: Active 2-way
HF Driver: 1” silk dome tweeter
LF Driver: 5” kevlar curved cone (magnetically shielded)
Bass Reflex Port: rear panel
Output Power: 60W (HF 30W, LF 30W), 85W AC consumption power
Frequency Response: 50 Hz - 20kHz
Input Impedance: 23.3 kOhm balanced, 13.3 kOhm unbalanced
Crossover Point: 2.5kHz
SPL: 88dB+/- 3dB
Rated Noise Power: 30 Watt (THD=1%, 4ohm@1kHz)
Input Sensitivity: 75mV@1watt, 415mV@30Watt
Input Connectors: XLR / TS 1/4” combo connector, balanced / unbalanced input
Volume Control: rear panel
Indicator: blue power LED on front panel
9.8" (H) x 6.9" (W) 7.9" (D)
250mm (H)x 176mm(W) x 200mm (D)
Weight: 9.9 lb / 4.5kg
Working Voltage: AC100-240V 50/60HZ, with 115V / 230V AC selection switch
