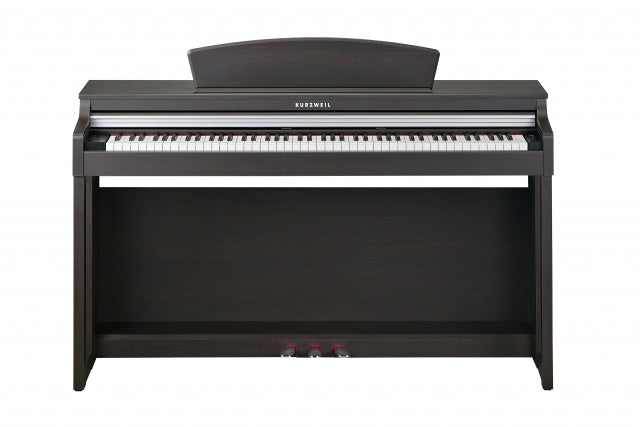

M230 Overview
Hammer Action Keyboard
M230 Keys 88 note, fully weighted graded hammer action keyboard with adjustable touch sensitivity.
30 Inspiring Factory Presets
M230 Presets Enjoy a wide range of preset sound selections, featuring pianos, electric pianos, organs, and orchestral instruments.
30 Rhythm Patterns
M230-rhythms Pre-recorded rhythm patterns in a variety of styles to play along with.
Modern Cabinet Design

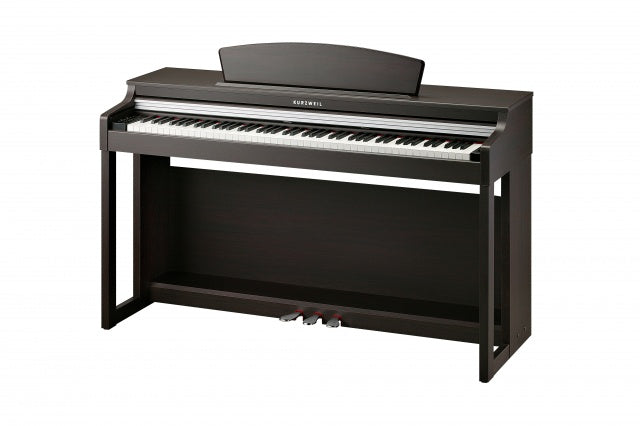

M230 cabinet Spinet-style cabinet available in simulated rosewood or white finishes, featuring a 20 Watt, 2-speaker, stereo sound system, built-in music stand and slide-out fallboard.
Simple and Intuitive Controls

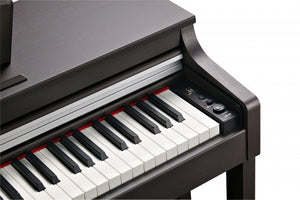

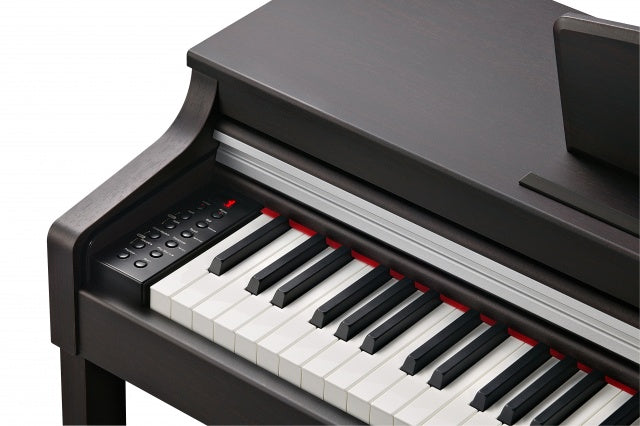

M230 UI Elegant control panel featuring easy access to all system functions, including Sound selection, Rhytms, Split/Layer, Transpose and Metronome.
Built-In Pedals
M230 pedals Sustain, Sostenuto and Soft Pedals standard
Keyboard: 88-Note, fully weighted, graded hammer action with adjustable touch sensitive keys (LK-70M)
Keyboard Sensitivity: 10 selectable response levels
Display: 5x7 Dot scrolling matrix LED
Voice Type: Stereo PCM
Polyphony: 128 voice
Preset Programs: 30
Rhythms: 30
Play Mode: Splits, Layers, Dual
Demo Songs: 50 Piano Masterpieces
General MIDI: No
Transpose: Yes
Tune: Yes
Metronome: Yes
Recorder/Sequencer: 1-Track; 20,000 note capacity
Education Mode: None
Audio Power: 20W x 2, 8 Ohms
Speaker: 6.5" x 2

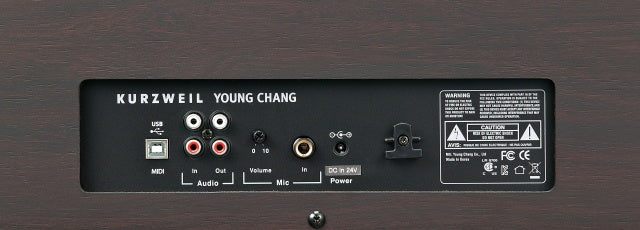

Audio Outs: Stereo left/right RCA line outs (for connecting to external amplification)
Audio Ins: Stereo left/right RCA line ins (for connecting external sound sources)
(1) 1/8" stereo MP3 IN
(1) 1/4" MIC Input
Headphones: (2) 1/4" stereo headphone outs
MIDI I/O: MIDI In and Out connectors
USB: (1) port; "Plug and Play" USB functionality allows MIDI over USB for connecting to/from an external computer sequencer; no software driver needed
Bluetooth: Yes
Pedals: (3) built-in switch-type sustain, sostenuto, soft
Finish: Simulated Rosewood or White
Dimensions: 55.12"(W) x 18.50" (D) x 33.46" (H)
1400mm (W) x 470mm (D) x 850mm (H)
Bench: Matching bench included
Weight: 123.5 lb. / 56kg
Power: 90-250V AC free voltage external power supply; 24V 2.5A DC
