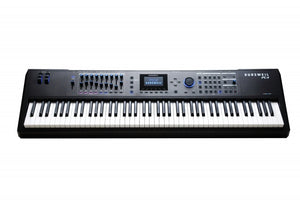

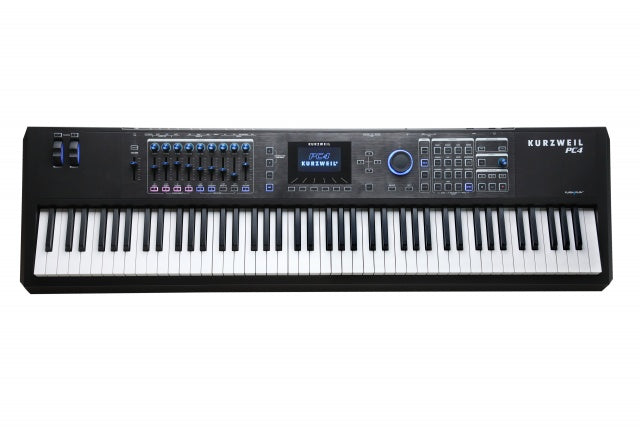

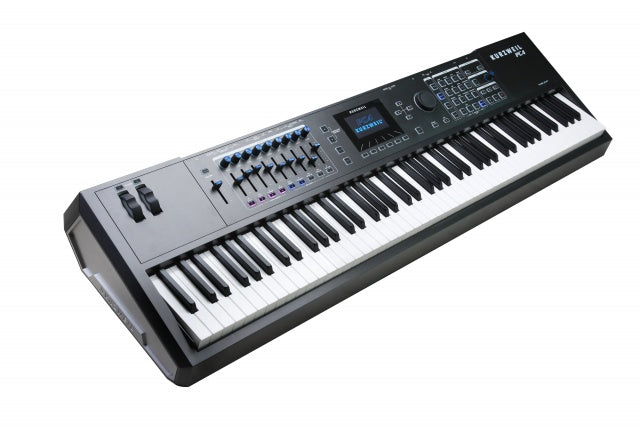

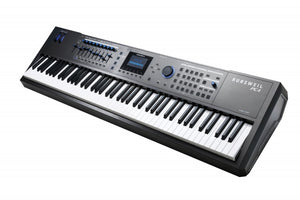

The Kurzweil PC4 – Performance Controller.
Explore::Create::Perform
| Keyboard: |
RPHA: Real Piano Hammer Action / 88-note, fully-weighted hammer-action with velocity and aftertouch sensitive adjustable keys
|

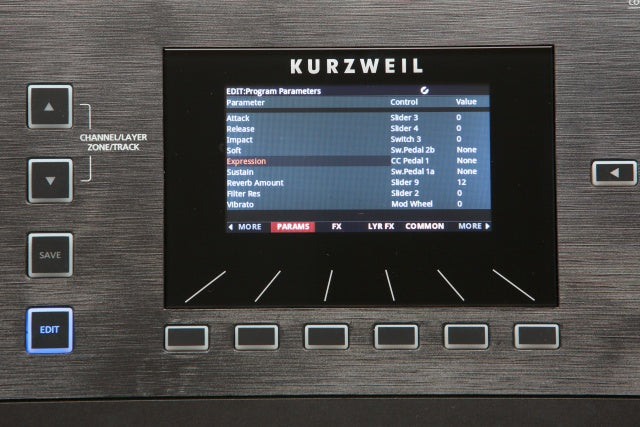

| Display: | 480 x 272 pixel high resolution color LCD with adjustable brightness |
| Polyphony: | 256 Voice Polyphony, dynamically allocated |
| Multitimbral: | 16 parts (one per MIDI channel) |
| Architecture: | Dynamic VAST: Powerful synthesis engine, with user programmable DSP algs and routing. 6-Operator FM Engine VA1 Inside: anti-aliasing, power-shaped oscillators and DSP processing from Kurzweil’s VA1 concept synth, capable of delivering authentic analog emulations as well as incredibly complex new sounds. Cascade Mode: lets the user route one layer through the DSP of any other layer within a program – up to 32 consecutive layers deep! |
| Sample Flash Memory: | 2 GB of re-loadable, non-volatile, user flash memory |
| Factory Programs: | 1000+ |
| User Programs: | 4096 |
| Factory Multis: | 50+ – featuring up to 16 independent zones |
| User Multis: | 4096 |
| General MIDI: | No |
| Kurzweil String Resonance: | Yes |
| Master EQ/Compressor: | Yes |
| Effects: | Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more 32 total FX units |

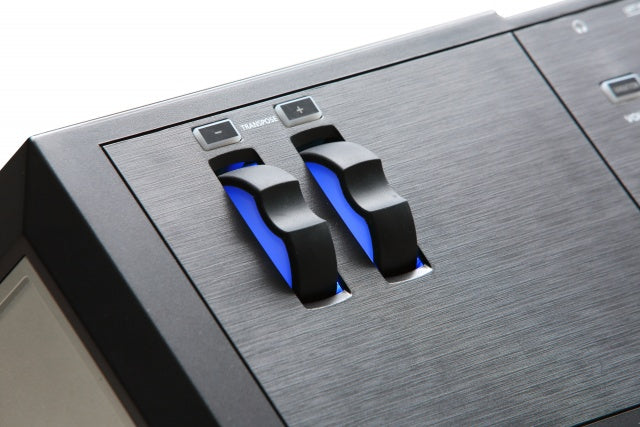

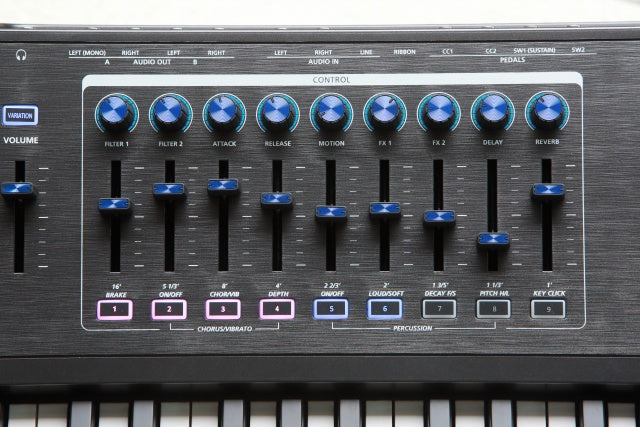

| Controllers: | 1 pitch wheel 1 modulation wheel 9 front panel sliders 9 Knobs 9 switches (assignable/zone mutes/KB3 control) 1 variation switch Tempo Controls w/ tap tempo 2 transpose switches Arp Controls Transport Controls 2 switch pedal inputs each supporting single switch pedal or single half damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately) 2 continuous control pedal inputs monopressure (aftertouch) Ribbon input (ribbon controller sold separately) |
| Sequencer: | 16 Tracks; 960 PPQ resolution. Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more. |
| MIDI CC Step Sequencers: | 16 simultaneous |
| RIFFs: | 16-per Multi |
| Arpeggiators: | 1-per Program, 16-per Multi |
| System Sample Rate: | 48kHz |

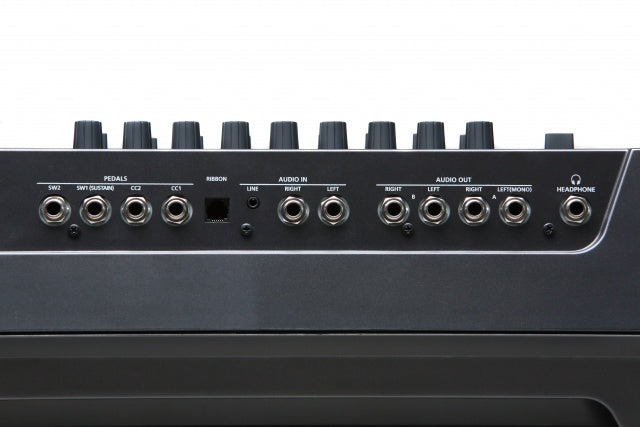

| Analog Outputs: | Four (2 pairs) 1/4″ balanced TRS analog (32-bit DACs) Automatic mono switching on main outs +21dBu maximum output 50Ω balanced source impedance |
| Audio Inputs: | Two 1/4″ inputs One stereo 1/8″ input (each with FX) for connecting your favorite MP3 player or other audio source for accompaniment playback |
| Headphones: | 1 back panel 1/4″ headphone output 130mW into 32 ohm headphones |

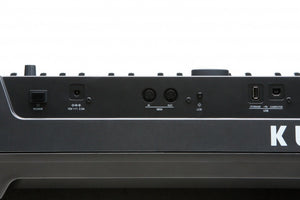

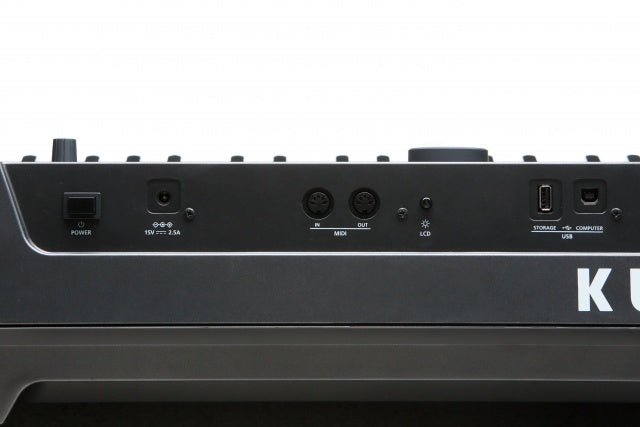

| MIDI: | In, Out |
| USB: | Two USB ports (one A port / one B port) Complete MIDI functionality over USB User program/multi file backup via USB drive Operating System updates via USB drive |
| Software Editors: | External editors for Mac OS X, Windows PC and iOS devices |
| FREE OS Updates: | OS updates via USB drive |
| Included Accessories: | Power cable, Switch pedal, USB cable |
| Height: | 6.5″ (16.51 cm) |
| Depth: | 14.75″ (37.46 cm) |
| Length: | 51.25″ (130.18 cm) |
| Weight: | 28.7 lb (13.01 kg) |
| Power: | External 15VDC 2.5A Power Supply |
